ID MAX.U500i Feig Electronic Hands-Free UHF VEHICLE ACCESS CONTROL READER WITH INTEGRATED ANTENNA AND SIGNAL LIGHT
ID MAX.U500i
UHF VEHICLE ACCESS CONTROL READER WITH INTEGRATED ANTENNA AND SIGNAL LIGHT
WITH INTEGRATED ACCESS CONTROLLER FOR STAND ALONE OPERATION
ID MAX.U500i
The ideal Stand alone-solution for vehicle identification and parking access control applications in airports, universities, gated communities and others.
Special features:
- Combination of UHF Long Range Reader with integrated antenna and Access Controller
- MyAccess software solution database management for up to 9.000 accounts
- Simultaneous monitoring of up to 2 lanes with read ranges up to 8 m
- Non-volatile event memory, buffered real time clock and Teach-in-mode
- Anti-Passback
- Integrated signal light (red/green)
- Secure Key Storage (Secure Element)
- Fast and easy mounting and installation
- PoE and USB interface
Feig Electronic ID CPR.02.10-AD Multi-tag Card Reader
Multi-tag Proximity CARD READER
13.56 MHz Proximity Multitag Card Reader
- ID CPR.02.10-AD Vicinity/Proximity Reader (RS232/Data Clock) with surface spacer include ID CPR.02.10-AD Vicinity/Proximity Reader (RS232/Data Clock) with surface spacer include Reader for ISO14443-A/B and ISO15693 Transponder with housing and integrated antenna supports NFC applications
- Interfaces: 1 x RS232, 1 x dataclock (TTL)
- Example of use:
- Access control
- Hotel key card reader
- Parking
- Time attendance
- Special Features:
- indoor and outdoor use (IP54)
- supports NFC applications
Feig Electronics Access Control readers

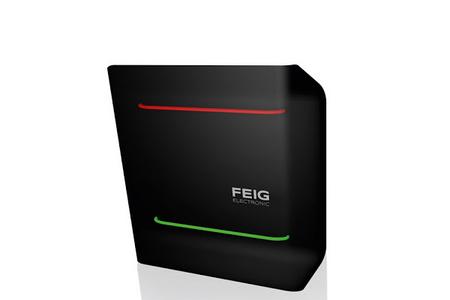

ID LRU500i Feig Electronic Hands-Free Compact UHF Tag Reader
UHF COMPACT READER WITH INTEGRATED ANTENNA AND SIGNAL LIGHT
SMALL AND POWERFUL UHF RAIN RFID LONG RANGE READER FOR VEHICLE ACCESS CONTROL AND LOGISTICS
ID LRU500i
UHF Compact Reader with integrated antenna and signal light
Ideal solution for vehicle identification and parking access control applications in airports, universities, gated communities and others.
Special features:
- Circular-polarized antenna for any transponder orientation
- 1 external antenna port for 2-lane applications
- Up to 8 m read range for Automatic Vehicle Identification (AVI)
- Robust and compact housing for outdoor use (IP65)
- Integrated signal light (red/green)
- Secure Key Storage for application keys
- Fast and easy mounting and installation
- Also available as stand alone version ID MAX.U500i with integrated Access Controller.
Fields of application:
- Vehicle access control for any kind of vehicle
- Pulse generator for barrier gate opening
- Parking management
- Perimeter Protection
- Small to medium size applications (up to 1000 users)
Feig Electronic ID MAX50.10 HOTEL CARD READER MIFARE
HF CARD READER
WITH INTEGRATED ACCESS CONTROLLER FOR IP BASED SYSTEMS
ID MAX50.10
RFID Card Reader, Hotel Card reader, NFC reader, Door Controller and Access Controller in one device
- 84,2 x 84,2 x 22 mm Card Reader
- 77,7 x 77,7 x 18 mm Wall-mounted housing
- Integrated antenna
- Interface: Ethernet 10BASE-T / 100BASE-TX, Automatic MDI/MDI-X Crossover correction, TCP/IP protokol, IPv4
- Supply voltage: Power over Ethernet (PoE); alternative: ext. power supply 24V up to 48V DC +/-10%
- Supported transponders: ISO14443-A, ISO14443-B, ISO15693, NFC
Application focus:
Use in industrial and commercial installations as a part of a complex access control system with widely distributed access points. Furthermore it can also be used for single doors in small and medium-sized installations.
Features:
- Offline management of up to 9.000 users
- Stand-alone operation with uploads from MyAccess Application
- AES-encrypted Ethernet-Data transfer
- Identification via serial number (UID, CSN) or freely configurable data area
- Real time clock & time zones
- Configurable event memory
- External relay optional

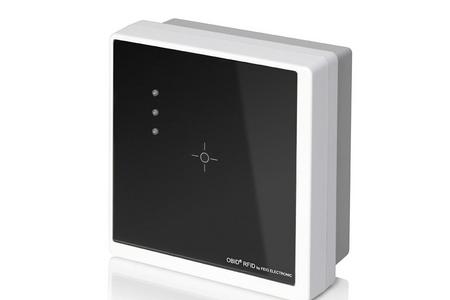

Feig Electronic ID CPR50.10 HF CARD READER FOR IP-BASED ACCESS CONTROL SYSTEMS
ID CPR50.10
Multi-tag Proximity CARD READER
13.56 MHz Proximity Multitag Card Reader
- 84.2 x 84.2 x 22 mm (3.33 x 3.33 x 0.87 in) Card Reader
- 77.7 x 77.7 x 18 mm (3.07 x 3.07 x 0.71 on) Wall-mounted housing
- with integrated antenna
- Interface: Ethernet 10BASE-T / 100BASE-TX
- Power supply: Power over Ethernet (PoE)
- Transponders: ISO14443-A, ISO14443-B, ISO15693, NFC
Example of use:
- Access control
- Time attendance
- Ticketing
Special Features:
- encrypted data transfer via Ethernet
- Operation modes "Polling Mode" and "Notification Mode"
- indoor and outdoor use (IP54)
- supports NFC applications
- optional available: external relay
